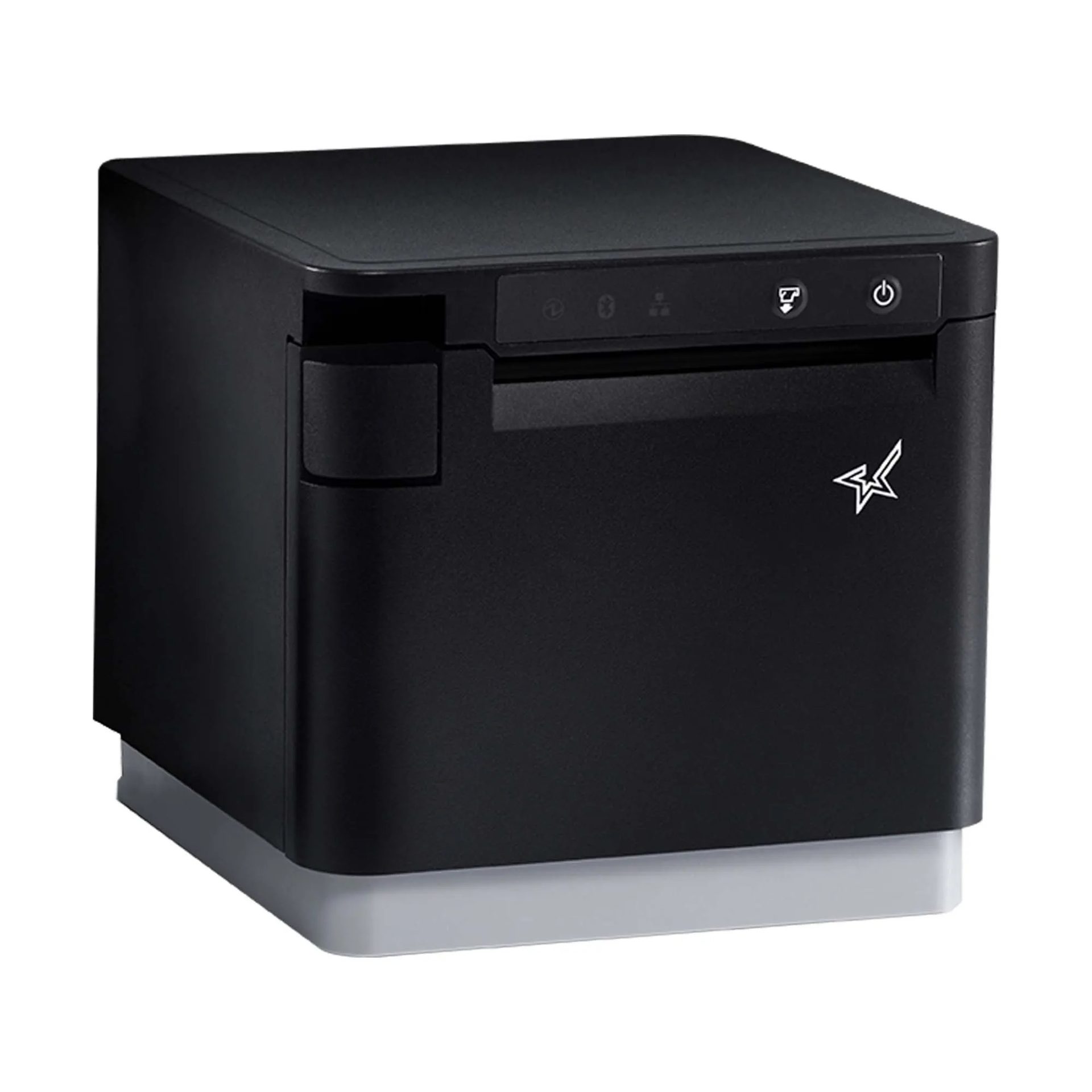

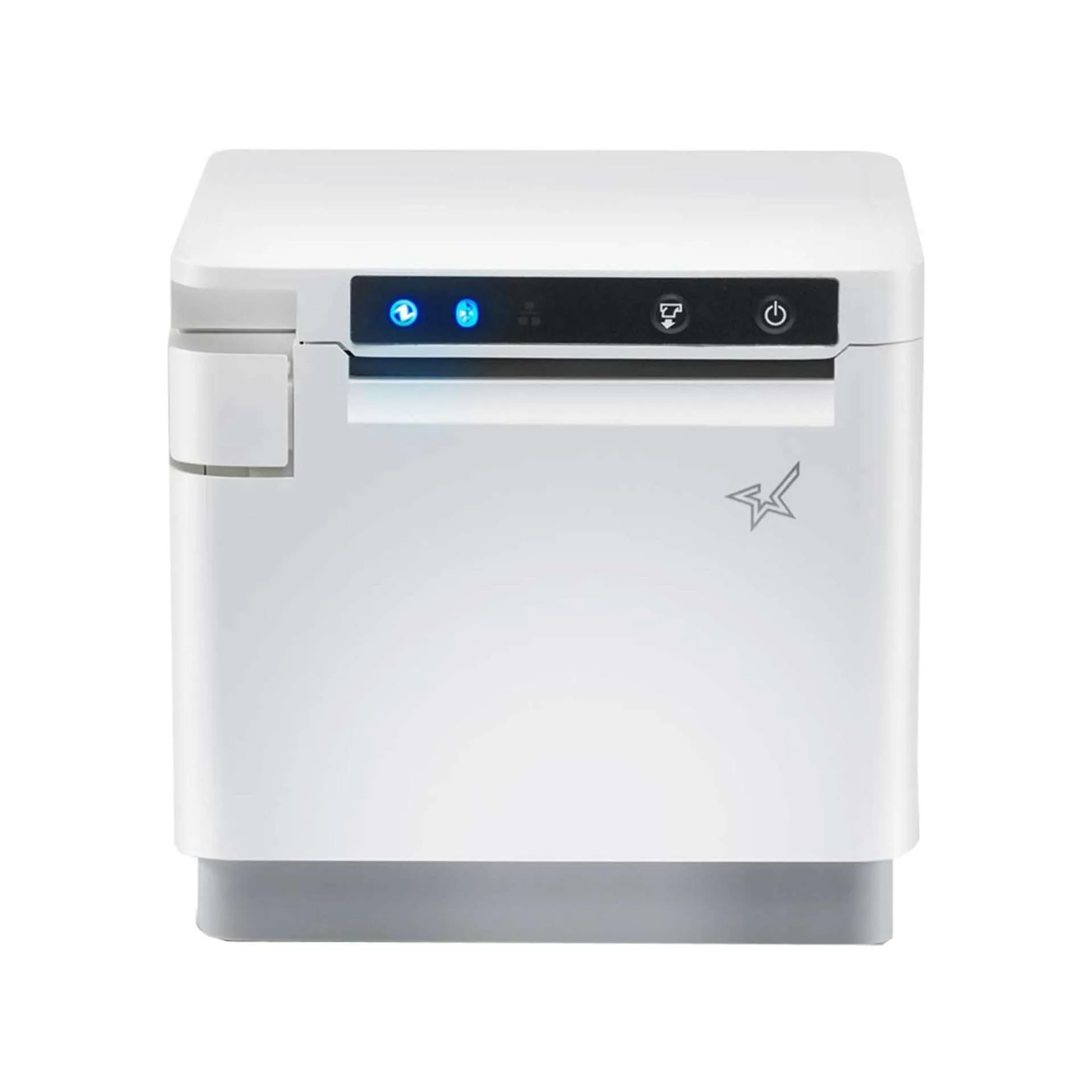

Star MC-Print3 Thermal Printer – Sleek, Compact, Connected
The Star MC-Print3 is a modern and connected 3-inch front-loading and front-exiting printer. With the mC-Print3’s compact size and fast printing speed (250 mm/sec), it is the perfect addition to any retail, restaurant, pharmacy, or grocery store. Star MC-Print3 features multiple connectivity options such as USB, Bluetooth, and Ethernet, and a main hub to connect peripherals including cash drawers, scanners, and customer displays.
In addition, Star mC-Print3 offers a paper-saving feature to reduce its environmental impact, and Print Flat Technology to ensure the quality of the printed receipt. The flat top design and splash-proof enclosure protect the printer from hazards such as water, debris, or insects when used in harsh environments or outdoors. With the addition of Star Micronics Cloud Services with digital receipting, cloud promotion print management, and internet device management, the mC-Print3 affordably offers retailers and restaurateurs the next generation of POS printing including marketing and receipt tools for the omnichannel world.
-
Sleek 3" thermal printer
-
Multiple interfaces: USB, Lightning, Ethernet and Bluetooth, CloudPRNT / WebPRNT
-
Fast receipt printing 250 mm/sec
-
Remarkable printer reliability
-
Paper-saving functions
-
Print Flat Technology and paper-saving function
-
Splash and insect-proof
-
Peripheral device connectivity - cash drawer, customer display, 1D/2D scanners, HID class devices
-
Paper-saving functions
-
Auto-cutter (partial cut)
-
Near end & paper end sensor
-
Front loading / front exit paper roll
- PromoPRNT
-
Designed to connect specifically to Apple's iOS operating systems / certifies to meet Apple performance standards
-
mC-Print3
-
External power supply
-
Starter paper roll
-
Setup guide
-
External buzzer & visual alarm -Star mC Sound (39594010)
-
Customer Displays White, LCD, Desktop Display, USB, 2-Line (39990020) or Black, LCD, Desktop Display, USB, 2-Line (39990030)
Specifications:
Weight Approx: 2.87 lbs
Dimensions: 5.19"W x 5.51"D x 4.92"H
Frequently Asked Questions:
1) Open the printer cover.
•Pull the opening lever & open the print cover.
*NOTE: When replacing paper, remove the paper core remaining in the paper roll holder.
2) Set the paper.
•Set the paper roll in the direction as shown in the illustration.
NOTE: To prevent a paper jam, carefully wind the paper tightly from the paper roll before setting it in the printer.

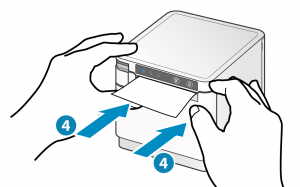

3) Close printer cover.
•Pull the end of the paper straight out, sandwich the paper and close the printer cover.
•Press down on both sides of the printer cover as shown below to close the printer cover.
The setting is completed when the paper is cut automatically.
NOTE: Remove the piece of paper that was automatically cut.
TURN ON POWER:
*Confirm that the power cable is connected properly before turning on the power.
1) Turn power on
•Press the Power button on the right side of the operation panel on the front of the main unit. When the Power LED lights up, release the Power button.
2) Confirm LED display
•The Power LED color changes according to the printer status. When the LED lights up or flashes in a color other than blue, take the appropriate action depending on the printer status.
TURN OFF POWER:
1) Turn power off
•Hold down the Power button on the right side of the operation panel on the front of the main unit for 1 second or more.
